How to Choose an Ebike Trailer Hitch Adapter

Choose an ebike trailer hitch adapter by matching the trailer coupler to the bike's rear axle, not by wheel size or tire width. For most EUNORAU setups, that means identifying quick release, M12 thru axle, M12 hub motor axle, or M12-to-M10 conversion before you buy.

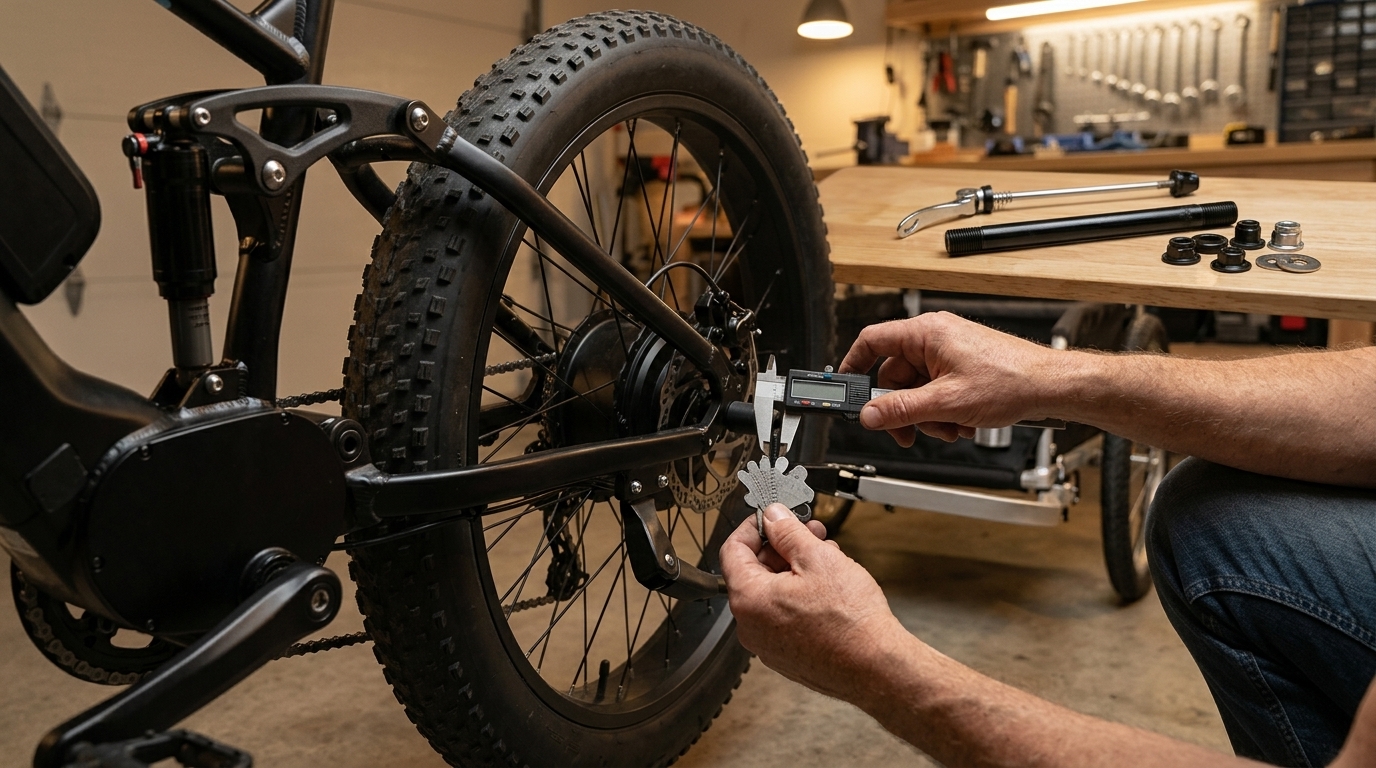

Ebike Trailer Hitch Adapter Fit First

1. Identify your trailer coupler.
2. Check rear axle type: quick release, M12 thru axle, or hub motor axle.
3. Measure dropout width and thread pitch.
4. Confirm motor-cable clearance.
5. Stay within trailer, bike, and local e-bike limits before carrying kids, groceries, or hunting gear.

The best ebike trailer hitch adapter keeps the trailer level, clears the frame and motor cable, and uses the axle hardware your bike was built around. Guessing from photos is where riders get into trouble. A 20x4 fat tire cargo bike and a 26x4 hunting e-bike can look similar from ten feet away, then use completely different rear axle hardware.

Start with the trailer. A one-wheel cargo trailer usually tracks closer to the rear wheel and works better on narrow trail, snow-packed access roads, or hunting paths where a wide trailer would clip brush. A two-wheel trailer gives you more load platform and better parking stability, but it asks more from the hitch because the side-to-side force is higher when one wheel hits a pothole.

If you're still choosing the bike side of the setup, compare the EUNORAU Cargo & Utility e-bikes first. The bike's frame, brakes, motor type, and payload rating matter as much as the small black adapter in your hand.

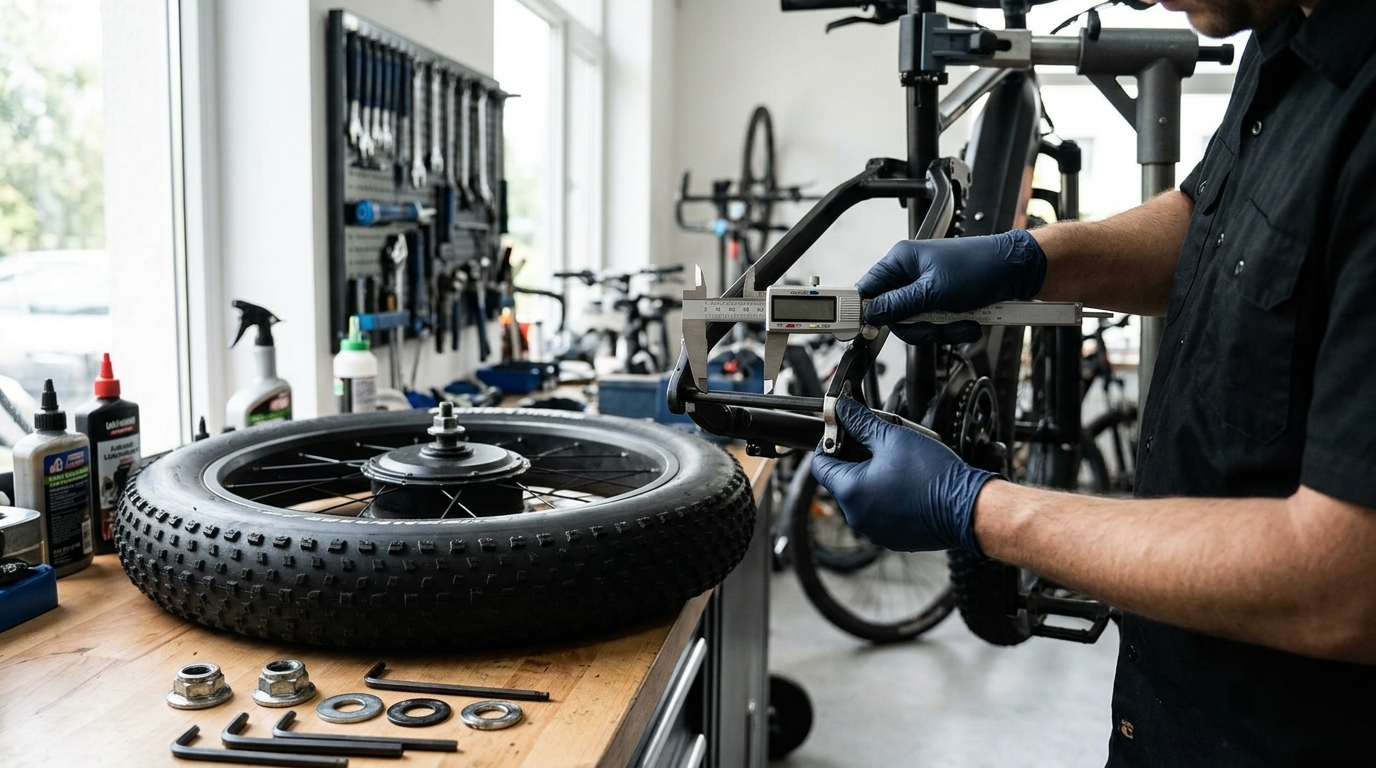

Ebike Trailer Axle Standards

The rear axle is the decision point. Not the tire. Not the frame color. Not whether the bike is "fat tire."

For EUNORAU's one-wheel cargo trailer, the product fit chart points FAT-HD and FAT-HS riders toward a quick-release adapter, SPECTER-S/SPECTER-ST/URUS riders toward an M12 thru axle adapter, and hub-drive models such as DEFENDER-S, FAT-AWD, rear-drive Flash, Flash AWD, G30-CARGO, UHVO, and DEFENDER toward an M12 motor axle adapter.

Tiny mismatch. Big headache.

A thru axle that is 2 mm short may still thread in, but it won't have full engagement. A hitch plate that sits against a hub motor cable can rub through insulation over time. A loose trailer arm can feel fine in the driveway, then clunk every time you brake downhill with groceries in the tub.

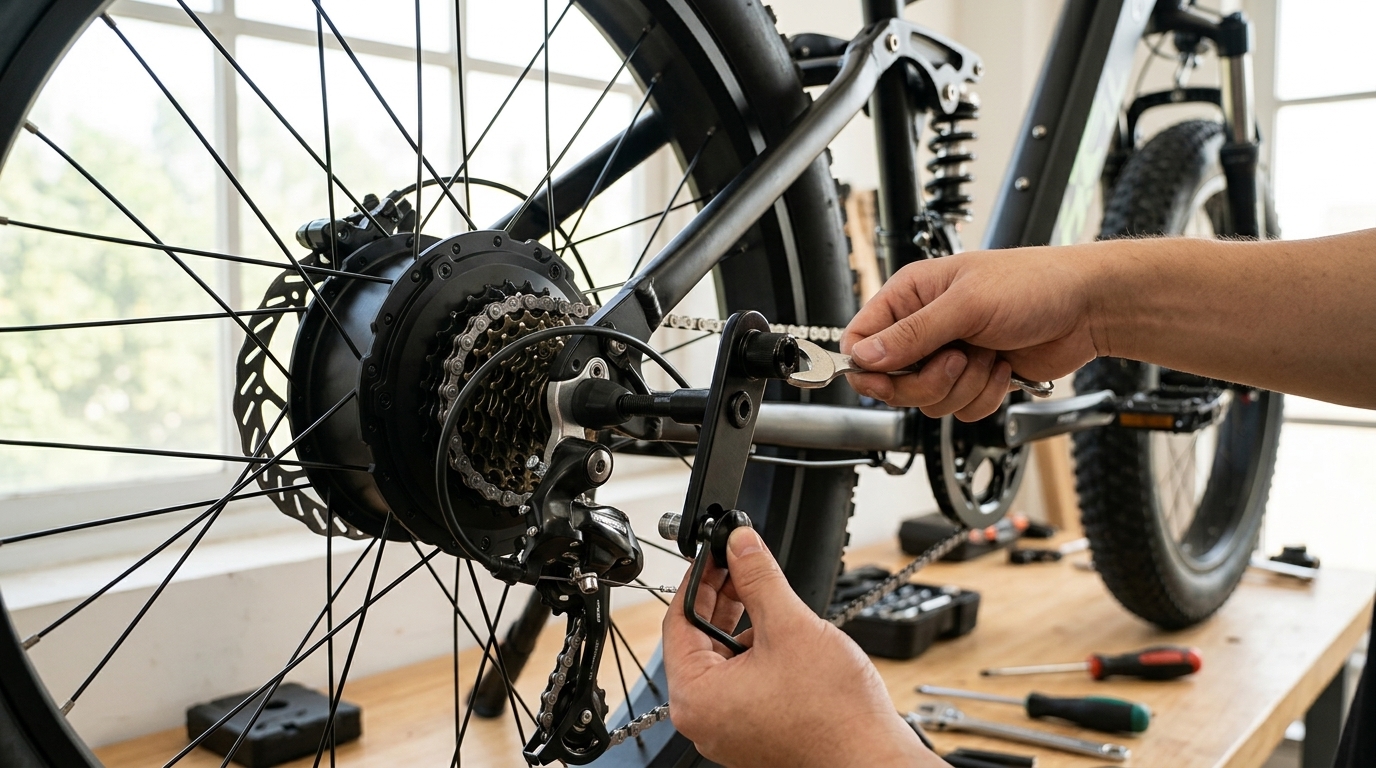

M12 Trailer Hitch Adapters

EUNORAU's M12 thru axle trailer hitch adapter is for mid-drive e-bikes that attach the trailer at the thru axle. The key numbers are M12 x P1.5 thread pitch, 185 mm or 233 mm axle length, and dropout choices of 142-148 mm or 175-190 mm. That split matters. SPECTER-ST and URUS use the 142-148 mm range, while SPECTER-S uses the wider 175-190 mm option.

The hub motor setup is different. The M12 motor axle trailer hitch adapter is made for hub motor e-bikes with an M12 nut and the EUNORAU one-wheel cargo trailer. It includes two parts that mount at the motor axle nut. Keep the original washer order unless the instructions tell you otherwise, and don't bury a torque washer behind a hitch plate just because it "almost lines up."

The M12 to M10 trailer hitch adapter solves a more specific problem: the bike side is M12, while the trailer connection needs M10. EUNORAU lists it as a female M12 to male M10 adapter with M12 x P1.25 internal thread, M10 external thread, and an 18 mm install length. It fits the EUNORAU two-wheel hunting trailer setup on models including DEFENDER-S, UHVO, DEFENDER, G30-CARGO, rear-drive Flash, and Flash AWD.

Don't mix the one-wheel and two-wheel assumptions. EUNORAU notes the two-wheel hunting trailer is not compatible with URUS, SPECTER-S, SPECTER-ST, FAT-HS, FAT-HD, and FAT-AWD.

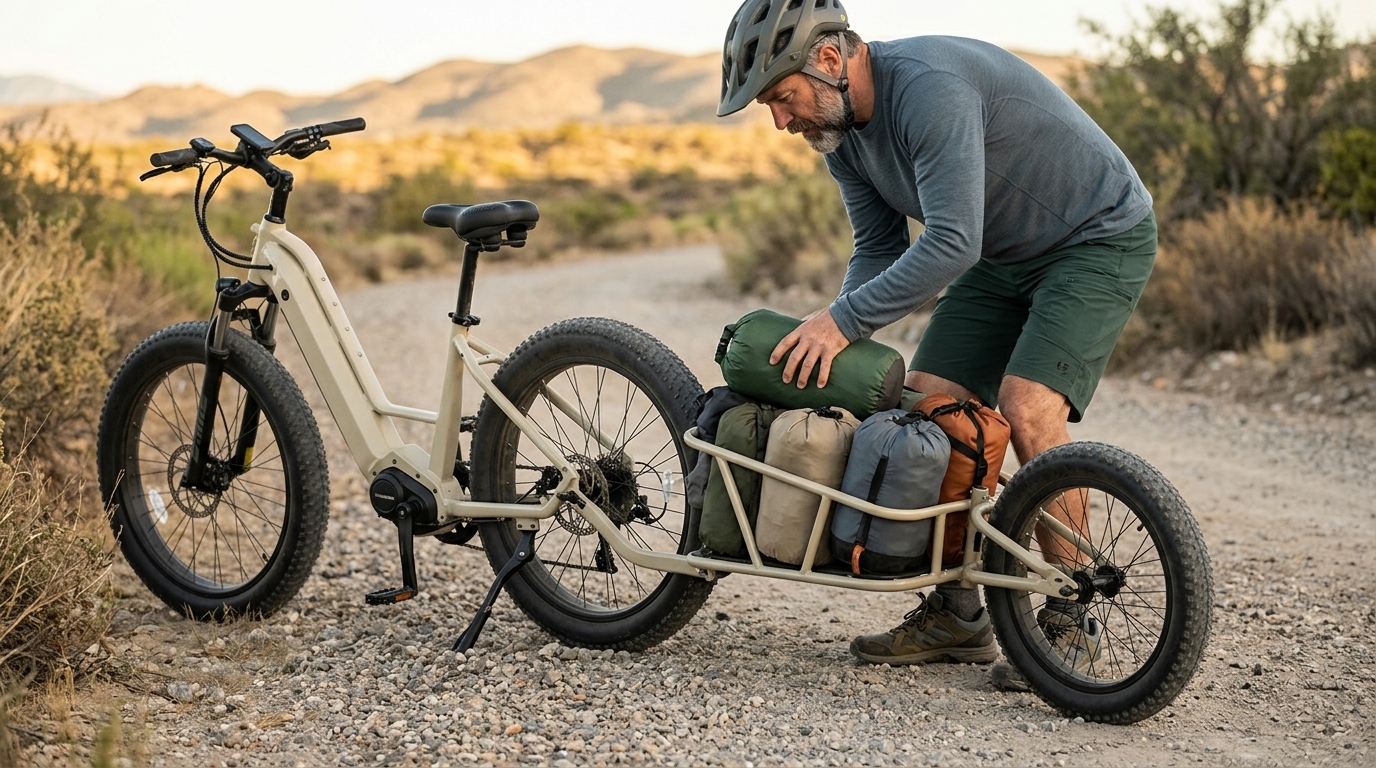

Trailer Hitch Load Limits

A trailer rating is not a dare.

The EUNORAU one-wheel cargo trailer is listed with a 100 lb / 45 kg max load, a 20x4 inch fat tire, suspension, and a 36 lb / 16.5 kg trailer weight. That makes sense for camping gear, hunting gear, fishing equipment, dry bags, or a grocery run where the load is packed low and tied down. The EUNORAU Cargo Trailer 1 Wheel follows closer behind the bike, which helps on tighter paths.

The EUNORAU two-wheel hunting trailer is listed with a 200 lb / 100 kg max load, 26 x 20 x 20 inch loading size, 20x3 inch fat tires, suspension, a 10.5 mm connector hole, and 27.8 lb / 12.6 kg trailer weight. The EUNORAU Hunting Trailer 2 Wheels is the better pick when the load is wide or awkward. Think decoys, a cooler, firewood, or a packed-out camp box.

Power helps a loaded e-bike start moving, but brakes, axle fit, and serviceable parts decide whether the setup stays safe after repeated rides. Treat the hitch adapter as part of the load path, not as a small accessory you can force into place.

Use this load check before the first real ride:

• Keep cargo below the trailer's listed max load, including straps, bags, tools, and the hitch hardware.
• Put dense items low and slightly forward of the trailer axle.
• Avoid tall, loose loads that sway when you stand on the pedals.
• Test braking with 25 lb, then 50 lb, before you try the full load.
• Don't carry children in a cargo or hunting trailer unless that trailer is rated for passengers with the right harness, cover, and rollover protection.

EUNORAU's cargo bike FAQ lists cargo bike weight capacity as 440 lb / 200 kg, but bike payload and trailer load are separate limits. A strong cargo bike doesn't magically turn a 100 lb trailer into a 200 lb trailer.

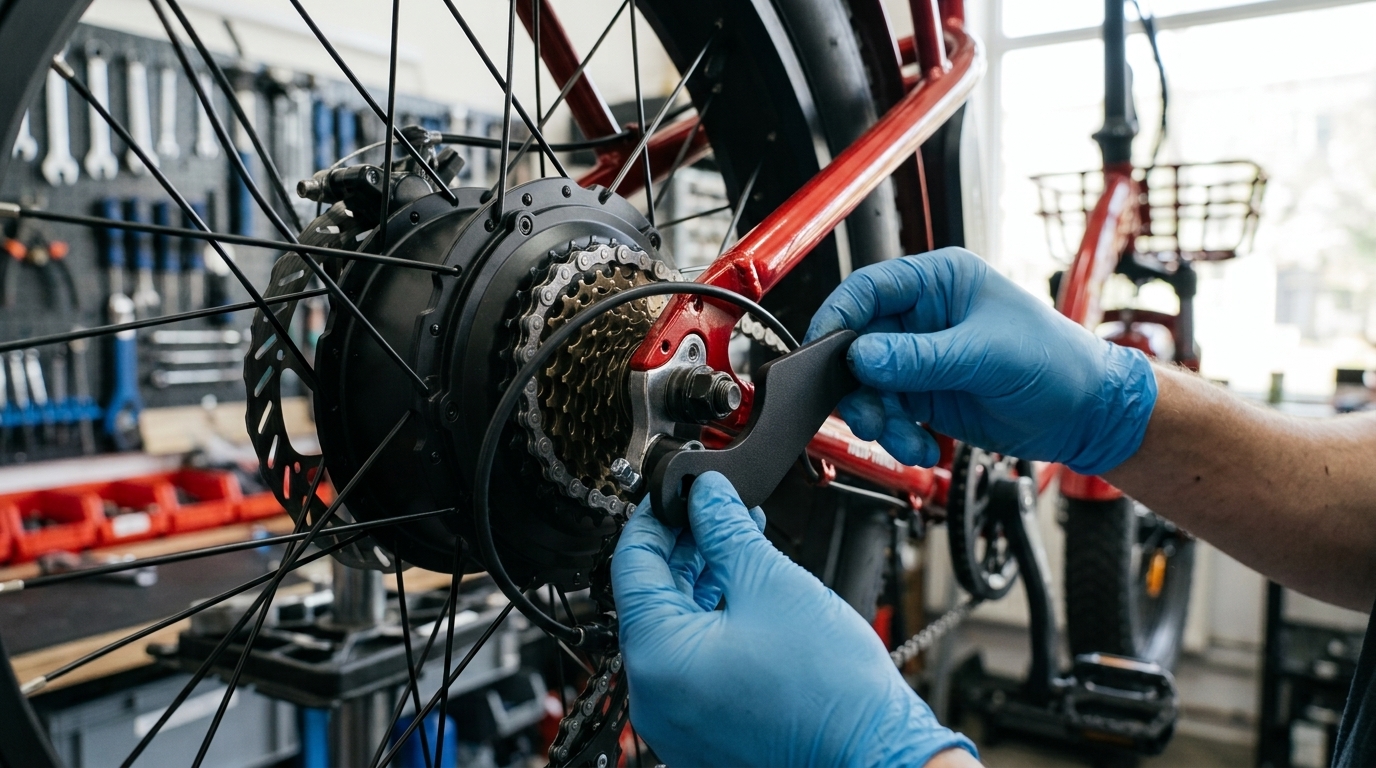

Motor Cable Hitch Clearance

Hub motor e-bikes need extra care because the motor cable often exits near the axle. If the adapter presses on that cable, the setup is wrong.

EUNORAU's M12-to-M10 adapter page gives a very specific warning: if the adapter is mounted on the left side, the hub motor cable can't be located at the shaft center left; the same logic applies on the right side. In plain riding terms, the cable needs a clean path with no pinch, sharp bend, or rub point. Turn the wheel by hand. Bounce the trailer arm. Then check again.

This advice doesn't apply the same way to a mid-drive bike with a clean rear thru axle. On a mid-drive setup, the motor is at the crank area, so the rear axle has fewer electrical clearance issues. You still need the correct axle length, pitch, and dropout width.

Before tightening anything, do a dry fit:

• Install the adapter without the trailer first.
• Confirm the axle or nut reaches full thread engagement.
• Check that the brake rotor spins without rub.
• Confirm the derailleur, rack struts, fender stays, and kickstand don't touch the hitch.
• Attach the empty trailer and lean the bike left and right.
• Retighten to the bike manual's torque spec after the first short ride.

If your bike uses a custom axle, carbon dropout, unusual torque washer, or enclosed dropout, stop and ask the trailer or bike maker. A cheap adapter can get expensive if it damages a frame, motor cable, or rear hub.

Ebike Trailer Rules And Warranty

Federal bicycle rules define one category of electric bicycle as a two- or three-wheeled vehicle with pedals, an electric motor under 750 watts, and a motor-only speed under 20 mph with a 170 lb rider. That definition appears in 16 CFR Part 1512. Trail access, class rules, helmet rules, and where you can tow a trailer are still handled by state and local rules, and PeopleForBikes tracks state-by-state electric bike laws.

For hunting and trail access, check the land manager before you go. A quiet e-bike with a trailer may be fine on one forest road and barred from a nearby natural-surface trail. Signs beat assumptions.

Warranty is the other practical piece. EUNORAU's warranty language excludes damage caused by accessories or equipment not furnished or approved by EUNORAU. That doesn't mean every third-party trailer is a bad idea. It does mean you should avoid drilling, grinding, stacking random washers, or forcing an axle that doesn't match the frame.

One more thing: trailers make brakes work harder. Hydraulic disc brakes are a better match for repeated school runs, hills, and loaded grocery trips than low-end mechanical brakes that need frequent adjustment. If you ride steep streets, snow, sand, or loose gravel, do the boring brake test in a parking lot. It tells the truth fast.

Ebike Trailer Hitch Adapter Buying Checklist

Before ordering from the EUNORAU Cargo & Utility equipment page, collect these details:

• Bike model and year, if known
• Rear motor type: hub motor or mid-drive
• Rear axle type: quick release, thru axle, or axle nut
• Dropout width: 142-148 mm, 175-190 mm, 190 mm, or model-specific
• Thread pitch: M12 x P1.5, M12 x P1.25, or the value in your manual
• Trailer model: one-wheel cargo trailer, two-wheel hunting trailer, child trailer, or another brand
• Trailer coupler hole or pin size, especially 10 mm vs 12 mm
• Photos of both dropouts and the motor cable side
• Planned load: groceries, camping gear, tools, game, or passengers

Send those details to EUNORAU support if you're unsure. A two-minute photo check beats ordering three adapters and hoping the last one fits.

FAQ

What hitch adapter fits ebikes?

The right hitch adapter matches your trailer coupler and rear axle standard. Check whether your e-bike uses quick release, M12 thru axle, M12 hub motor axle, or an M12-to-M10 trailer connection before buying.

Can ebikes pull child trailers?

Yes, but only with a child-rated trailer, correct hitch, working brakes, and local legal access. Don't carry children in a cargo or hunting trailer unless the trailer maker rates it for passengers.

Is M12 the same as M10?

No. M12 and M10 are different thread diameters, and thread pitch can differ too. An M12-to-M10 adapter is only for setups where the bike side is M12 and the trailer side needs M10.

For EUNORAU riders, the cleanest next step is simple: match your bike model to the listed adapter, confirm the trailer type, and ask EUNORAU support with photos if the axle or cable routing looks unusual. The right hitch lets your e-bike carry more without making the ride sketchy.
